Horizontal Sieve Shaker AS 400 control
The RETSCH AS 400 control is used for sieving dry goods with test sieves up to 400 mm in diameter. The uniform, horizontal circular sieving motion produces a sharp separation of the sample fractions. Fine and coarse-grained goods from areas such as milling, brewing, chemical industry, quarries, soil testing, woodworking and plastics industry, can be exactly separated with the AS 400 control. This particular sieving motion is preferably used for long or fibrous, needle-shaped or flat materials due to their horizontal orientation. For the testing of plastics (grainy molding materials), the standard DIN 53 477 stipulates exactly this circular sieving motion.
The AS 400 control can be used as test instrument for the quality control according to DIN EN ISO 9001. Due to the controlled drive which is independent of the power frequency the AS 400 control yields reproducible results worldwide. The speed and sieving time are set, displayed and monitored digitally. The instrument is supplied with a test certificate and can be recalibrated. If desired, the rotation direction can be set to alternate in the interval. A memory for 9 sieving programs facilitates routine analyses. The AS 400 control has an integrated interface for controlling all sieving parameters via the EasySieve® software.
The sieve shakers of the control series can be equipped with a variety of accessories to provide for a wealth of application requirements.
With the RETSCH clamping devices the sieves are clamped safely, quickly and conveniently on the sieve shaker. The clamping devices “comfort” are particularly user-friendly and timesaving.
Collecting pans, intermediate pans, intermediate rings and sieve lids.
Clamping lid with nozzle, collecting pans with outlet, venting rings.
Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).
We provide IQ/OQ documentation for the „control“ sieve shakers to support IQ/OQ certification by our customers.
Suitable for thorough cleaning of test sieves and for quick, gentle drying of samples and sieves.
EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11-conform version.
RETSCH's Analytical Sieve Shaker AS 400 control is ideally suited for separation, fractioning, particle size determination of construction materials, ground corn, plastics, sand, splints
coffee
wood chips
soil
cereals
To find the best solution for your sample preparation task, visit our application database.

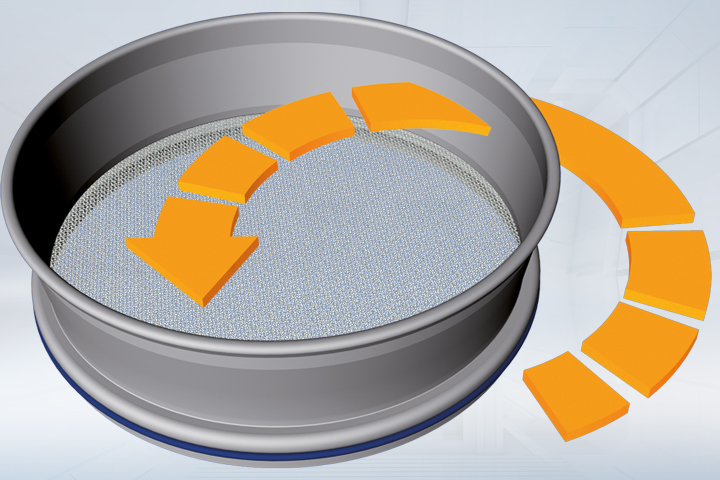

The base plate of the AS 400 control performs horizontal circular motions with a radius of 15 mm (according to DIN 53477). The speed of 50 to 300 rpm is electronically controlled. It is continuously adjustable to meet the requirements of the product to be sieved. The actual value of the number of revolutions is digitally displayed. The base plate is driven by a robust, maintenance-free drive motor with a power of 125 Watt. The power is transmitted via an eccentric.
| Applications | separation, fractioning, particle size determination |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | powders, bulk materials |
| Measuring range* | 45 µm - 63 mm |
| Sieving motion | horizontal circular motion |
| Max. batch / feed capacity | 5 kg |
| Max. number of fractions | 7 / 9 / 17 |
| Max. mass of sieve stack | 15 kg |
| Speed | digital, 50 - 300 min-1 |
| Time display | digital, 1 - 99 min |
| Interval operation | 1 - 10 min |
| Storable SOPs | 9 |
| Suitable for dry sieving | Yes |
| Suitable for wet sieving | no |
| Serial interface | Yes |
| Including test certificate / can be calibrated | Yes |
| Suitable sieve diameters | 100 mm / 200 mm / 203 mm (8") / 305 mm / 315 mm / 400 mm |
| Max. height of sieve stack | 510 mm |
| Clamping devices | standard, "comfort", each for dry sieving |
| Protection code | IP 20 |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| W x H x D | 540 x 260 x 507 mm |
| Net weight | ~ 70 kg |
| Standards | CE |
