Jaw Crusher BB 50

With the list below, you may request a free, non-binding quote.

Please select the items you would like to include by adding them to your inquiry list. You may choose items from any product page.

Your inquiry list will be visible in the upper right corner of the website.

General Inquiry

Not sure which items you need or you prefer a general quote?

Jaw Crusher BB 50

Jaw Crusher BB 50 complete with breaking jaws and wearing plates

Selection help
Selection help
The BB 50 is available with different breaking jaw and wearing plate materials which allows for contamination-free crushing without undesired material abrasion.

Please note:

The material of the crushing tools should be harder than the sample to be crushed.

For further information on materials, please see the document "Material Composition of Equipment and Accessories" at the end of the order data list.

  • Manganese steel (density 7.8 g/cm3; hardness 35 HRC):
    Used for crushing medium-hard to hard and brittle sample materials. As manganese steel is compacted under pressure, the material becomes harder over time.

  • Stainless steel (density 7.8 g/cm3; hardness 550 HV):
    Used for crushing medium-hard to hard, brittle, non-corrosive sample materials.

  • Tungsten carbide (density 14.8 g/cm3; hardness 1200 HV):
    Used for crushing very hard, brittle sample materials (with a Mohs-hardness up to 7-8). By using tungsten carbide, contamination of the sample with iron is prevented.

  • Zirconium oxide (density 5.9 g/cm3; hardness 1200 HV, high abrasion resistance):
    This ceramic material is suitable for crushing medium-hard to hard or fibrous sample materials. It is mainly used for heavy-metal-free grinding processes, but also when discoloration of the sample by abrasion must be avoided. Please bear in mind that zirconium oxide is a brittle material which may break under too much stress.

  • Steel 1.1750/1.0344 (density 7.8 g/cm3; hardness 52-60 HRC):
    Mainly used for crushing medium-hard to hard and brittle sample materials. For heavy-metal-free sample homogenization.

breaking jaws / wearing plates
20.062.0001
BB 50200–240 V, 50/60 Hzmanganese steel / stainless steel
20.062.0002
BB 50200–240 V, 50/60 Hzstainless steel / stainless steel
20.062.0009
BB 50200–240 V, 50/60 Hzstainless steel / stainless steel
20.062.0003
BB 50200–240 V, 50/60 Hztungsten carbide / tungsten carbide
20.062.0004
BB 50200–240 V, 50/60 Hzzirconium oxide / zirconium oxide
20.062.0005
BB 50200–240 V, 50/60 Hzsteel 1.1750 / steel 1.0344,
for grinding without heavy-metal contamination


Accessories Jaw Crusher BB 50

Breaking jaws BB 50

22.048.0014Breaking jaws
manganese steel
1 pair
22.048.0012Breaking jaws
stainless steel
1 pair
22.048.0023Breaking jaws
stainless steel, waved
1 pair
22.048.0010Breaking jaws
tungsten carbide
1 pair
22.048.0011Breaking jaws
zirconium oxide
1 pair
22.048.0016Breaking jaws
steel 1.1750
1 pair, for grinding without heavy-metal contamination

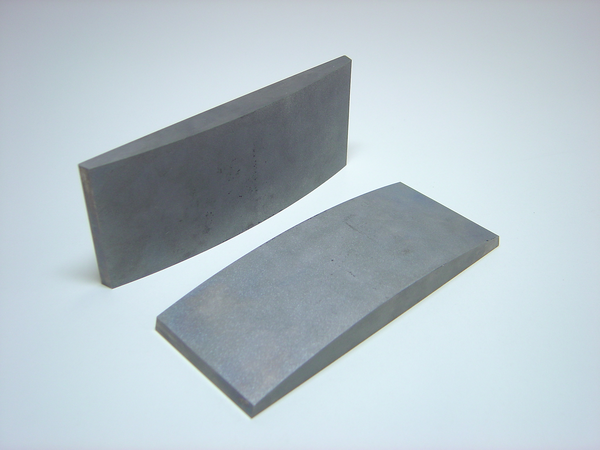

Wearing plates BB 50


22.711.0015Wearing plates
stainless steel
1 pair
22.711.0016Wearing plates
tungsten carbide
1 pair
22.711.0017Wearing plates
zirconium oxide
1 pair
22.711.0018Wearing plates
steel 1.0344
1 pair, for grinding without heavy-metal contamination


Further accessories BB 50


03.050.0437Cover lid for collecting receptacle
05.242.0038V-belt, 1 piece

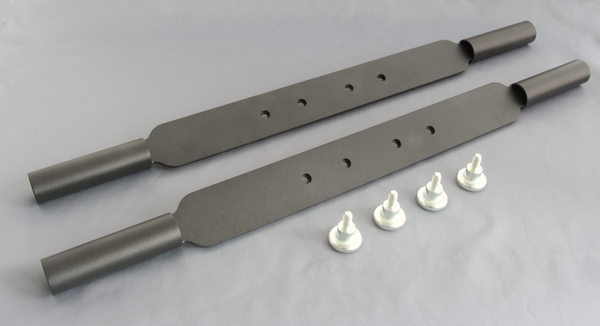

22.825.0005Carry handles, 1 pair
