Cutting Mill SM 100

Cutting Mill SM 100

With the list below, you may request a free, non-binding quote.

Please select the items you would like to include by adding them to your inquiry list. You may choose items from any product page.

Your inquiry list will be visible in the upper right corner of the website.

General Inquiry

Not sure which items you need or you prefer a general quote?

Send us a general inquiry

Cutting Mill SM 100

Cutting Mill SM 100 complete with collecting receptacle, 5 litres
(please order rotor, hopper, bottom sieve and optional base frame separately)
20.727.0001
SM 1003~ 400 V, 50 Hz
20.727.0009
SM 100220–230 V, 50/60 Hz, with frequency converter
20.727.0002
SM 1003~ 400 V, 50 Hz,
for grinding without heavy-metal contamination
20.727.0010
SM 100220–230 V, 50/60 Hz, with frequency converter,
for grinding without heavy-metal contamination
22.824.0005Base frame with wheels for SM 100
other electrical versions available

Rotors SM 100, SM 200, SM 300

Selection help
Selection help
Rotor types:

  • 6-disc rotor with replaceable and reversible tungsten carbide plates:
    acts like a shredder; especially suitable for medium-hard materials

  • Parallel section rotor:
    acts like an axe; especially suitable for soft, elastic and fibrous materials

  • V-rotor (for SM 300 only):
    acts like scissors; especially suitable for tough, soft and fibrous materials, improved grinding efficiency and sample discharge
Available materials:
  • Stainless steel:
    suitable for most applications

  • Steel 1.0580:
    suitable when abrasion of heavy metals is a problem, e. g. when the heavy metal content is to be analyzed

    Heavy-metal-free grinding tools are specifically designed for preparing samples which are analyzed for their heavy metal content. However, abrasion of grinding tools can never be avoided completely.
22.608.00226-disc rotor, stainless steel, with reversible cutting tips of tungsten carbide
22.608.00286-disc rotor, steel 1.0580, with reversible cutting tips of tungsten carbide, for grinding without heavy-metal contamination
22.608.0021Parallel section rotor, stainless steel
22.608.0018Parallel section rotor, steel 1.0580, for grinding without heavy-metal contamination


Hoppers

Selection help
Selection help
Available hoppers:

  • Universal hopper - standard applications
    The sample can be forced against the rotor with the plunger, resulting in very good grinding efficiency.

  • Long stock hopper - ideal for processing longish samples like twigs
    Also suitable for free flowing samples like corn.
22.785.0007Universal hopper with plastic plunger
for SM 100
22.408.0004Long stock hopper with wooden plunger
for SM 100


Additional plungers for universal hopper

Selection help
Selection help
Plungers for neutral-to-analysis grinding:

  • Aluminum plunger is cleaned very easily

  • Plastic plunger is suitable for cleaning in a dish washer

  • Wooden plunger is used if a natural material is preferred
22.725.0010Plastic plunger
22.725.0011Wooden plunger
22.725.0012Aluminum plunger


Bottom sieves SM 100, SM 200, SM 300

Bottom sieves of stainless steel

Selection help
Selection help
Available materials:

  • Stainless steel:
    suitable for most applications

  • Steel 1.0353:
    suitable when abrasion of heavy metals is a problem, e. g. when the heavy metal content is to be analyzed

    Heavy-metal-free grinding tools are specifically designed for preparing samples which are analyzed for their heavy metal content. However, abrasion of grinding tools can never be avoided completely.
Please note:
Fibrous materials like straw may pass the pores of the sieves lengthwise. This means that fibers longer than the aperture size of the used sieve may remain in the sample.
03.647.0312
Trapezoid holes0.25 mm
03.647.0313
Trapezoid holes0.50 mm
03.647.0314
Trapezoid holes0.75 mm
03.647.0315
Trapezoid holes1.00 mm
03.647.0316
Trapezoid holes1.50 mm
03.647.0318
Square holes2.00 mm
03.647.0319
Square holes3.00 mm
03.647.0320
Square holes4.00 mm
03.647.0321
Square holes6.00 mm
03.647.0322
Square holes8.00 mm
03.647.0024
Square holes10.00 mm
03.647.0062
Square holes20.00 mm


Bottom sieves of steel 1.0353 for grinding without heavy-metal contamination

Selection help
Selection help
Available materials:

  • Stainless steel:
    suitable for most applications

  • Steel 1.0353:
    suitable when abrasion of heavy metals is a problem, e. g. when the heavy metal content is to be analyzed

    Heavy-metal-free grinding tools are specifically designed for preparing samples which are analyzed for their heavy metal content. However, abrasion of grinding tools can never be avoided completely.
Please note:
Fibrous materials like straw may pass the pores of the sieves lengthwise. This means that fibers longer than the aperture size of the used sieve may remain in the sample.
03.647.0325
Trapezoid holes0.25 mm
03.647.0326
Trapezoid holes0.50 mm
03.647.0327
Trapezoid holes0.75 mm
03.647.0328
Trapezoid holes1.00 mm
03.647.0329
Trapezoid holes1.50 mm
03.647.0331
Square holes2.00 mm
03.647.0332
Square holes3.00 mm
03.647.0333
Square holes4.00 mm
03.647.0334
Square holes6.00 mm
03.647.0335
Square holes8.00 mm
03.647.0359
Square holes10.00 mm


Accessories SM 100, SM 200, SM 300



Collecting receptacles

22.003.0008Collecting unit 250 / 500 ml, incl. 2 sample bottles
22.523.0001Sample bottles, 250 ml, 10 pieces
22.003.0007Collecting receptacle, 5 litres, stainless steel
22.003.0010Collecting receptacle, 26 litres, plastic, incl. adapter and filter hose
22.187.0006Ring-type filter for collecting receptacle, 5 litres
22.748.0001Dust filter clamping rings for ring-type filter, incl. 5 dust filters

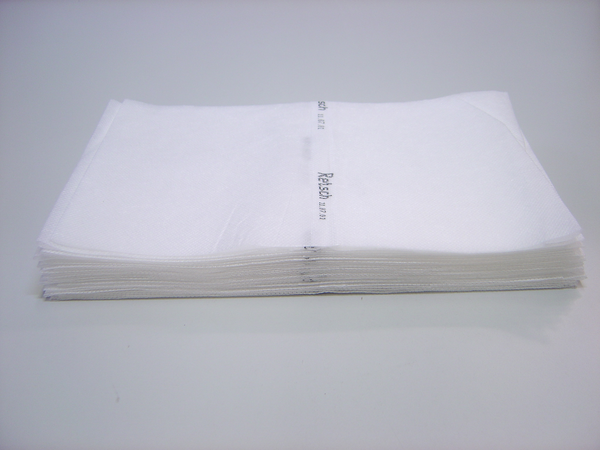

05.742.0008Dust filters for ring-type filter, 25 pieces
22.187.0007Filter hose for collecting receptacle, 5 litres, incl. holder


Accessories for Rotors

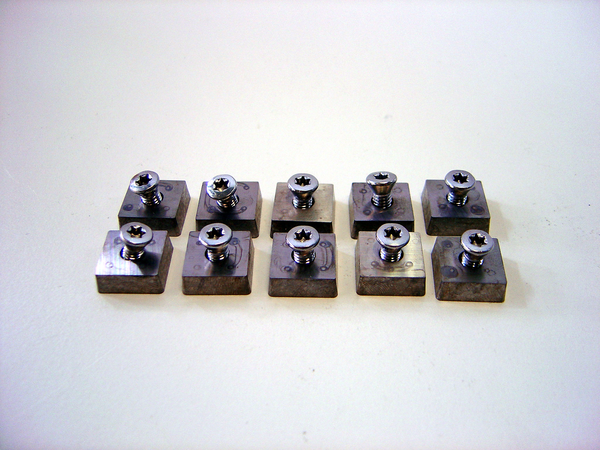

05.908.0001Reversible cutting tips, tungsten carbide, for 6-disc rotor, 10 pieces

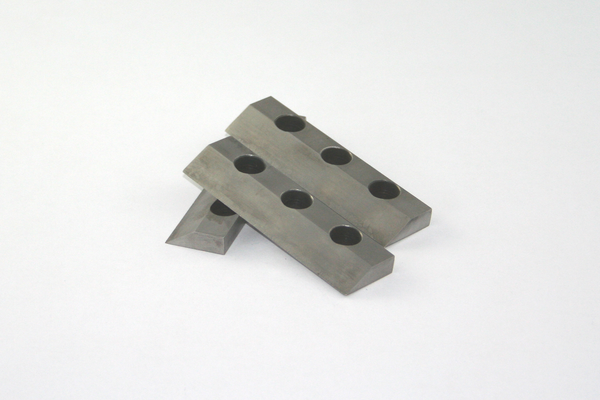

22.151.0004Cutting plates, stainless steel, for parallel section rotor, 1 set (3 pieces)
22.151.0006Cutting plates, steel 1.1740, for parallel section rotor, 1 set (3 pieces)for grinding without heavy-metal contamination
for grinding without heavy-metal contamination


Stationary cutting bars

22.152.0007Cutting bars, stainless steel, 1 set (3 pieces) for SM 100
22.152.0009Cutting bars, steel 1.1740, 1 set (3 pieces) for SM 100for grinding without heavy-metal contamination
22.608.0035Adjustment aid for cutting bars


Additional items SM 100, SM 200, SM 300

22.225.0002Replacement extraction tool for rotor
22.111.0003Gasket for door SM 100 / SM 200 / SM 300, 1 piece
99.200.0032IQ/OQ Documentation for SM 100
