Mixer Mill MM 500 control | ||||
Mixer Mill MM 500 control with quick release clamp (please order grinding jars, balls and items required for temperature controlled grinding seperately) | ||||
20.767.0001 | MM 500 control 200–230 V, 50/60 Hz | |||
20.767.0002 | MM 500 control 100–120 V, 50/60 Hz | |||
For temperature control please order a Mixer Mill MM 500 control set or accessories as shown in table “Items required for temperature control” | ||||
Device extension cryoPad for the operation with LN2 | ||||
Device extension cryoPad for LN2 control | ||||
70.950.0002 | cryoPad 100–230 V, 50/60 Hz (incl. connection tube, safety valve; for LN2 supply provided by customer) | |||
Accessories for temperature control | ||||

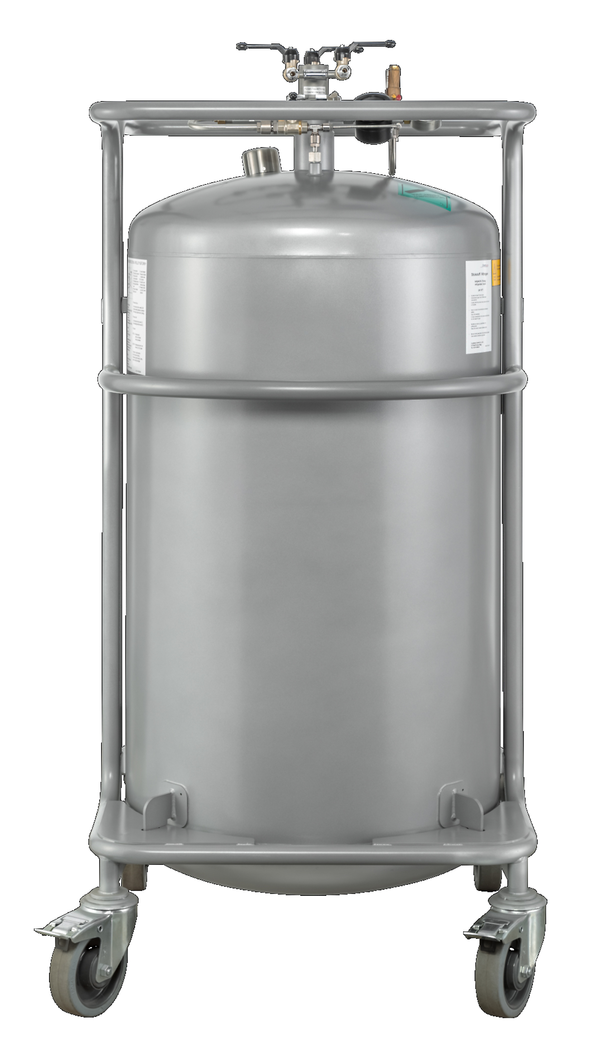

02.480.0003 | Autofill 150 l, incl. connection tube and safety valve | |||
02.480.0002 | Autofill 50 l, incl. connection tube and safety valve | |||
02.707.0188 | Tubing set for liquid thermal fluids | |||
Screw-Lock grinding jars MM 500 control/nano | ||||
The Screw-Lock grinding jars of the MM 500 are pressure tight up to 5 bar and suitable for dry, wet and cryogenic grinding. Thanks to the integrated safety closure, they safely enclose inert atmosphere, for example after the air in the jar was exchanged with inert gas through an aeration lid. The special geometry of the jars makes filling of the jars with sample material very easy. Always select a grinding jar size suitable for the sample volume (approx. 30% of the jar is filled with sample material). Grinding jars are provided in sizes ranging from 1.5 ml to 50 ml (not all sizes available in all materials). The document “Grinding Jar Ball Charge” in the Downloads section provides details about usable volumes, maximum feed sizes and correct filling of the jars with grinding balls for dry and wet milling as well as cell disruption. For efficient and contamination-free grinding processes the grinding jars are available in 4 different materials (no undesired abrasion). The energy input increases with the density of a material. For pulverizing soft samples, materials with a low to medium density should be used, whereas for hard samples it is better to use high-density materials. Available materials:
| ||||
Hardened steel | ||||
01.462.0463 | 50 ml | |||
01.462.0468 | 80 ml | |||
01.462.0470 | 125 ml | |||
Stainless steel | ||||
01.462.0447 | 50 ml | |||
01.462.0467 | 80 ml | |||
01.462.0420 | 125 ml | |||
Tungsten carbide | ||||
01.462.0466 | 50 ml | |||
01.462.0479 | 80 ml | |||
Zirconium oxide | ||||
01.462.0464 | 50 ml | |||
01.462.0417 | 80 ml | |||
01.462.0471 | 125 ml | |||
Multi cavity ginding jars MM 500 control/nano | ||||
01.462.0537 | 4 x 10 ml, 1.4112 stainless steel, incl. 3 pouring aids | |||
22.462.0014 | Pouring aid for 10 ml Multi cavity jar | |||
01.462.0536 | 2 x 25 ml, 1.4112 stainless steel, incl. 1 pouring aid | |||
22.462.0015 | Pouring aid for 25 ml Multi cavity jar | |||
Accessories for grinding in 1.5 or 2 ml vials | ||||
22.008.0012 | Adapter made of aluminum for 18 x 2.0 ml / 1.5 ml Safe-lock reaction vials or 9 x 2.0 ml reaction vials made of stainless steel 316L | |||
22.749.0001 | Safe-lock reaction vials 2.0 ml, 1000 pcs. | |||
22.749.0002 | Safe-lock reaction vials 1.5 ml, 1000 pcs. | |||
22.749.0008 | Reaction vials made of stainless steel 316L, 2.0 ml, 10 pcs. | |||
Accessories for grinding under inert atmosphere | ||||
Aeration lid for screw-lock grinding jars | ||||
(order valve kit separately) | ||||
01.107.0568 | Aeration lid for MM 500 control/nano grinding jar 50 ml, stainless steel | |||
01.107.0688 | Aeration lid for MM 500 control/nano grinding jar 80 ml, stainless steel | |||
01.107.0567 | Aeration lid for MM 500 control/nano grinding jar 125 ml, stainless steel | |||
01.107.0636 | Aeration lid for MM 500 control/nano grinding jar 50 ml, tungsten carbide | |||
01.107.0693 | Aeration lid for MM 500 control/nano grinding jar 80 ml, tungsten carbide | |||
01.107.0569 | Aeration lid for MM 500 control/nano grinding jar 50 ml, zirconium oxide | |||
01.107.0689 | Aeration lid for MM 500 control/nano grinding jar 80 ml, zirconium oxide | |||
01.107.0564 | Aeration lid for MM 500 control/nano grinding jar 125 ml, zirconium oxide | |||
22.864.0001 | Spare valve set for aeration lids M8x1 | |||
Accessories for grinding jars MM 500 control/nano | ||||

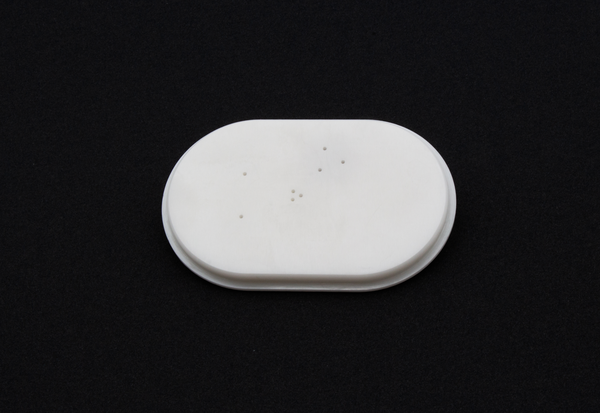

22.486.0006 | Grinding jar stabilization pad | |||
02.486.0050 | Jar wrench for grinding jars | |||
05.114.0057 | O-ring for grinding jars 50 ml, 1 piece | |||
05.114.0158 | O-ring for grinding jars 80 ml, 1 piece | |||
05.114.0122 | O-ring for grinding jars 125 ml, 1 piece | |||
Accessories for cold grinding MM 500 control/nano | ||||
For cold grinding (cryogenic grinding) we recommend using the Cryo kit which consists of two transport aids, one insulated container (6 liters) as well as a pair of safety goggles. | ||||
22.354.0003 | Cryo kit for cooling the grinding jars with liquid nitrogen (incl. insulated container 4-liter, 2 grinding jar holders, 1 pair of safety glasses) | |||
Accessories MM 500 control/nano | ||||
05.114.0197 | O-ring PTFE for grinding jars 50 ml, 1 piece, for cryogenic grinding | |||
05.114.0196 | O-ring PTFE for grinding jars 80 ml, 1 piece, for cryogenic grinding | |||
05.114.0195 | O-ring PTFE for grinding jars 125 ml, 1 piece, for cryogenic grinding | |||
99.200.0040 | IQ/OQ Documentation for MM 500 control | |||
Pressure and temperature measuring system GrindControl | ||||
incl. lid with lid insert, sensors and transmitter, receiver, software, case, grinding jar, opening aid and cleaning accessories for MM 500 control/nano | ||||
22.782.0012 | GrindControl with MM 500 control/nano grinding jar 125 ml, stainless steel | |||
22.782.0013 | GrindControl with MM 500 control/nano grinding jar 125 ml, zirconium oxide | |||
more upon request | ||||
Accessories | ||||
05.114.0122 | O-ring for 125 ml grinding jars (MM 500 control/nano and Emax) | |||
22.186.0006 | Sintered filter with O-ring, set à three pieces | |||
03.474.0229 | GrindControl insert of lid for MM 500 control/nano and Emax grinding jar 125 ml, stainless steel | |||
03.474.0230 | GrindControl insert of lid for MM 500 control/nano and Emax grinding jar 125 ml, zirconium oxide | |||
22.864.0001 | Spare set valves M8X1 for GrindControl and aeration lids | |||
Grinding balls | ||||
Hardened steel | ||||
05.368.0029 | 5 mm Ø | |||
05.368.0030 | 7 mm Ø | |||
05.368.0059 | 10 mm Ø | |||
05.368.0032 | 12 mm Ø | |||
05.368.0108 | 15 mm Ø | |||
05.368.0033 | 20 mm Ø | |||
Stainless steel | ||||
22.455.0010 | 2 mm Ø, 500 g (approx. 110 ml) | |||
22.455.0011 | 3 mm Ø, 500 g (approx. 120 ml) | |||
22.455.0002 | 3 mm Ø, 200 pieces (approx. 6 ml) | |||
22.455.0003 | 5 mm Ø, 200 pieces (approx. 25 ml) | |||
05.368.0034 | 5 mm Ø | |||
05.368.0035 | 7 mm Ø | |||
05.368.0063 | 10 mm Ø | |||
05.368.0037 | 12 mm Ø | |||
05.368.0109 | 15 mm Ø | |||
05.368.0062 | 20 mm Ø | |||
05.368.0105 | 25 mm Ø | |||
Tungsten carbide | ||||
05.368.0038 | 5 mm Ø | |||
05.368.0039 | 7 mm Ø | |||
05.368.0071 | 10 mm Ø | |||
05.368.0041 | 12 mm Ø | |||
05.368.0110 | 15 mm Ø | |||
05.368.0070 | 20 mm Ø | |||
Zirconium oxide | ||||
32.368.0005 | 0.1 mm Ø, 0.5 kg (approx. 135 ml) | |||
32.368.0003 | 0.5 mm Ø, 0.5 kg (approx. 135 ml) | |||
32.368.0004 | 1 mm Ø, 0.5 kg (approx. 135 ml) | |||
05.368.0089 | 2 mm Ø, 0.5 kg (approx. 135 ml) | |||
05.368.0090 | 3 mm Ø, 0.5 kg (approx. 140 ml) | |||
22.455.0007 | 3 mm Ø, 200 pieces (approx. 6 ml) | |||
22.455.0009 | 5 mm Ø, 200 pieces (approx. 25 ml) | |||
05.368.0146 | 7 mm Ø | |||
05.368.0094 | 10 mm Ø | |||
05.368.0096 | 12 mm Ø | |||
05.368.0113 | 15 mm Ø |
